The RY8336 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous current over a wide input supply range,with excellent load and line regulation.

    The RY8336 requires a minimal number of readily available, external components and is available in a space saving ESOP8 package.

    RY8336是一种高频、同步、校流、降压、开关模式转换器，具有内部功率模块。它提供了一个非常紧凑的解决方案，提供了一个较宽的输入供电范围内的3a连续电流，具有良好的负载和线路调节。

    RY8336需要最少数量的现成的外部组件，并可在一个节省空间的ESOP8包。

RY8336 Features/特性:

Wide 4.5V to 30V Operating Input Range

3A Continuous Output Current

500KHz Switching Frequency

Short Protection with Hiccup-Mode

Built-in Over Current Limit

Built-in Over Voltage Protection

PFM Mode for High Efficiency in Light Load

Internal Soft-Start

130mΩ/100mΩ Low RDS(ON) Internal Power MOSFETs

Output Adjustable from 0.923V

No Schottky Diode Required

Integrated internal compensation

Thermal Shutdown

Available in ESOP8 Package

-40°C to +85°C Temperature Range

RY8336 Applications/应用：

Digital Set-top Box (STB)

Tablet Personal Computer (Pad)

Flat-Panel Television and Monitor

Wi-Fi Router / AP

Digital Video Recorder (DVR)

Portable Media Player (PMP)

Cable Modem / XDSL

General Purposes

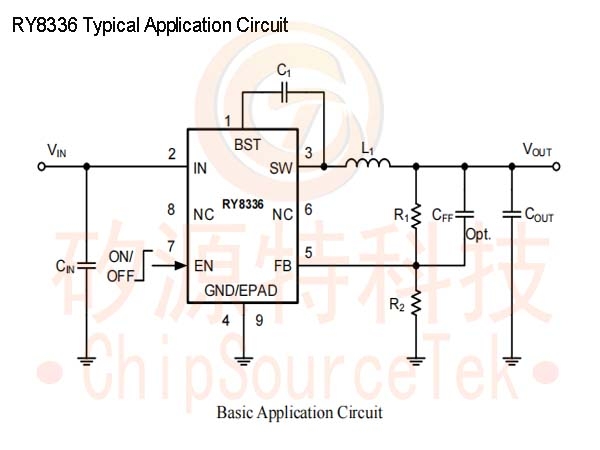

RY8336 Typical Application Circuit:

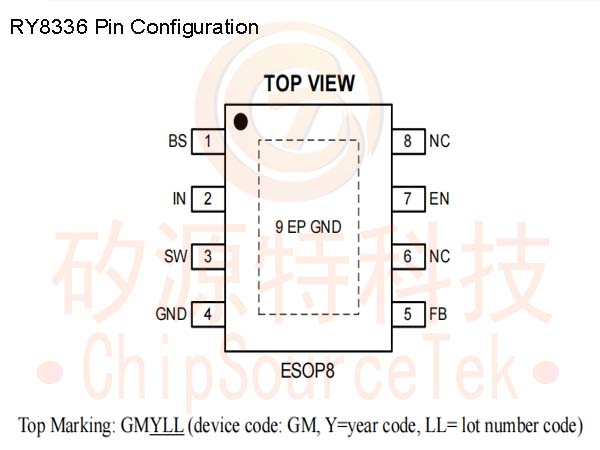

RY8336 Pin Description:

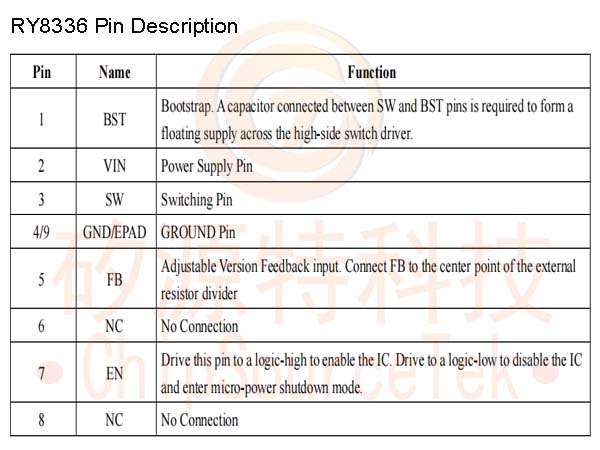

RY8336 Pin Description:

RY8336 Order Information (1):

Marking	Part No.	Model	Description	Package	T/R Qty
GMYLL	70301579	RY8336	RY8336 Buck, 4.5-30V, 3A, 500KHz, VFB 0.923V, ESOP8	ESOP8	3000PCS

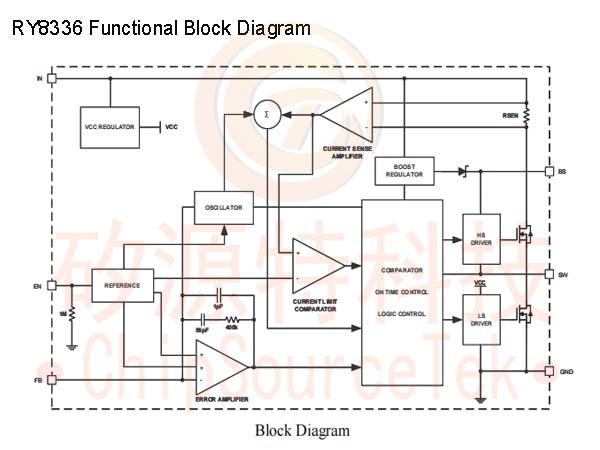

RY8336 Functional Block Diagram:
