升降压芯片

MT3608

    MT3608是一种恒定频率的6引脚SOT23电流模式升压转换器,低功耗应用。MT3608在1.2MHz,并允许使用微小、低成本电容器和电感器的高度不超过2mm。内部软启动导致较小的涌入电流延长电池寿命。
    MT3608具有自动切换到脉冲的功能轻负载时的频率调制模式。这个MT3608包括欠压锁定、电流限制和热过载保护,以防止输出过载时的损坏。这个MT3608可在小型封装SOT-23-6中使用。
    MT3608 Description/概述:
        The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life.
        The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608 is available in a small 6-pin SOT-23 package.
        MT3608是一种恒定频率的6引脚SOT23电流模式升压转换器,低功耗应用。MT3608在1.2MHz,并允许使用微小、低成本电容器和电感器的高度不超过2mm。内部软启动导致较小的涌入电流延长电池寿命。
        MT3608具有自动切换到脉冲的功能轻负载时的频率调制模式。这个MT3608包括欠压锁定、电流限制和热过载保护,以防止输出过载时的损坏。这个MT3608可在小型封装SOT-23-6中使用。

    MT3608 Features/特性:
    Integrated 80mΩ Power MOSFET
    2V to 24V Input Voltage
    1.2MHz Fixed Switching Frequency
    Internal 4A Switch Current Limit
    Adjustable Output Voltage
    Internal Compensation
    Up to 28V Output Voltage
    Automatic Pulse Frequency Modulation Mode at Light Loads
    up to 93% Efficiency
    Available in a 6-Pin SOT23-6 Package

    MT3608 Applications/应用:
    Battery-Powered Equipment
    Set-Top Boxed
    LCD Bais Supply
    DSL and Cable Modems and Routers
    Networking cards powered from PCI or PCI express slots

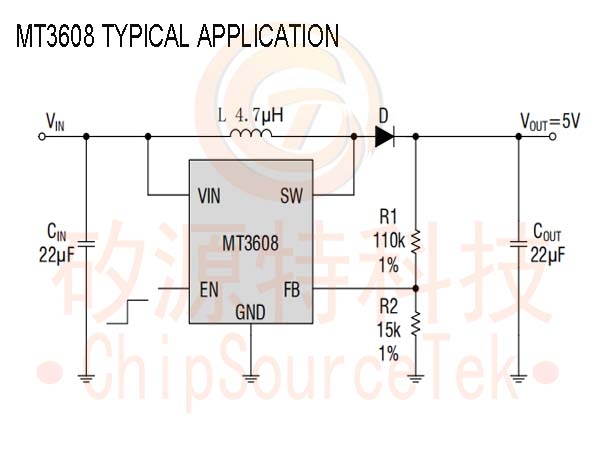

    MT3608 Typical Application:
    MT3608 Package/Order Information:
    Order Part Number
    Package
    Top Marking

    MT3608
    SOT23-6
    B628DC

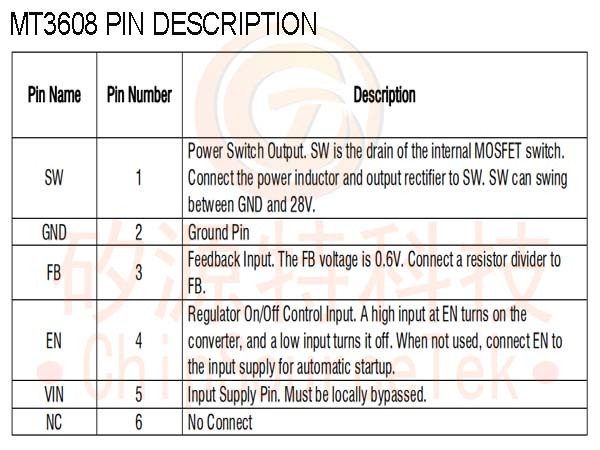

    MT3608 Pin Description:

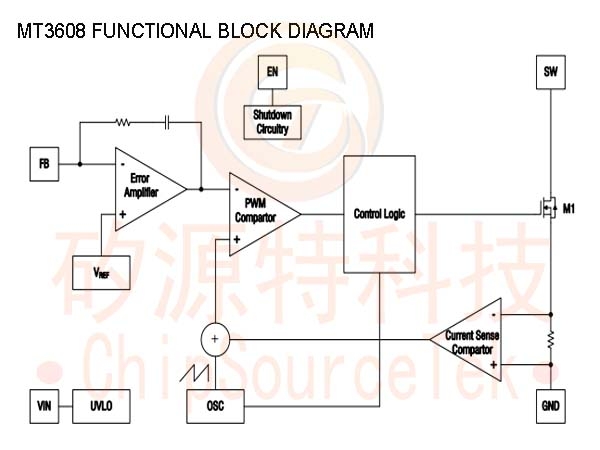

    MT3608 Functional Block Diagram:
