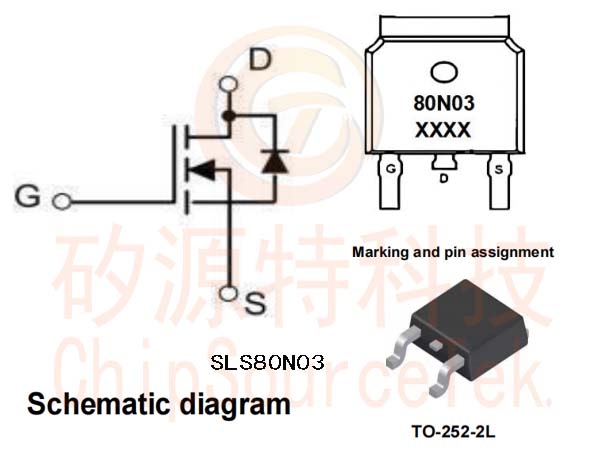

SLS80N03是VDS=30V, ID=80A，RDS(ON) (TYP)=4mΩ @VGS=10V，RDS(ON) (TYP)=7mΩ @VGS=4.5V的N沟道增强模式功率Mosfet。提供TO-252-2L封装。

This Power SLS80N03 is produced using advanced TRENCH technology.

This advanced technology has been especially tailored to minimize conduction loss , provide superior switching

performance , and withstand high energy pulse i n the avalanche and commutation mode.

SLS80N03 Description/说明:

SLS80N03是VDS=30V, ID=80A，RDS(ON) (TYP)=4mΩ @VGS=10V，RDS(ON) (TYP)=7mΩ @VGS=4.5V的增强模式功率Mosfet。提供TO-252-2L封装。

This Power SLS80N03 is produced using advanced TRENCH technology.

This advanced technology has been especially tailored to minimize conduction loss , provide superior switching

performance , and withstand high energy pulse i n the avalanche and commutation mode.

SLS80N03 General Features/一般特征：

VDS=30V, ID=50A

RDS(ON) (TYP)=4mΩ@VGS=10V

RDS(ON) (TYP)=7mΩ@VGS=4.5V

Very Low On- resistance RDS( ON)

Low Crss

Fast switching

10 0% avalanche tested

SLS80N03 Application/应用：

PWM applications

Load switch

Power management
