MXD035N02 Description/概述:
MXD035N02是VDS=20V,ID=100A,RDS(ON)(Typ.)=4.7mΩ@VGS=2.5V,RDS(ON)(Typ.)=3.5mΩ@VGS=4.5V的N沟道Mosfet。提供TO-252封装。
MXD035N02是VDS=20V,ID=100A,RDS(ON)(Typ.)=4.7mΩ@VGS=2.5V,RDS(ON)(Typ.)=3.5mΩ@VGS=4.5V的N沟道Mosfet。提供TO-252封装。
The MXD035N02 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a wide variety of applications.
MXD035N02 Features/特性:
VDS=20V, ID=100A
RDS(ON)(Typ.)=4.7mΩ @ VGS=2.5V
RDS(ON)(Typ.)=3.5mΩ @ VGS=4.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
MXD035N02 Applications/应用:
Battery Protection
Load switch
Power management

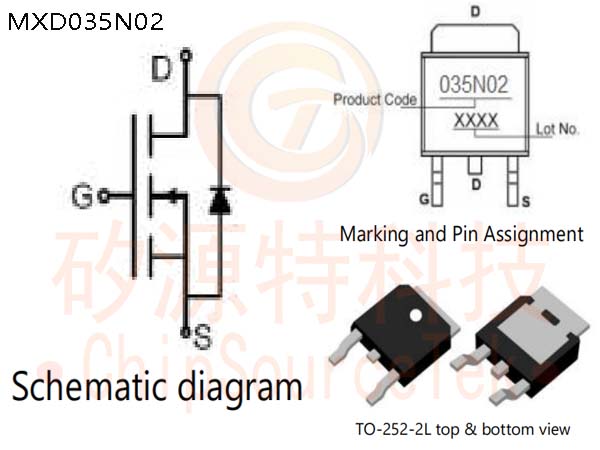

MXD035N02 Pin Configuration/引脚配置:

MXD035N02 Ordering Information/订购信息:
Device
|
Marking
|
Storage Temperature
|
Package
|
Devices Per Reel
|
MXD035N02
|
035N02
|
-55°C to 150°C
|
TO-252-2L
|
2500
|

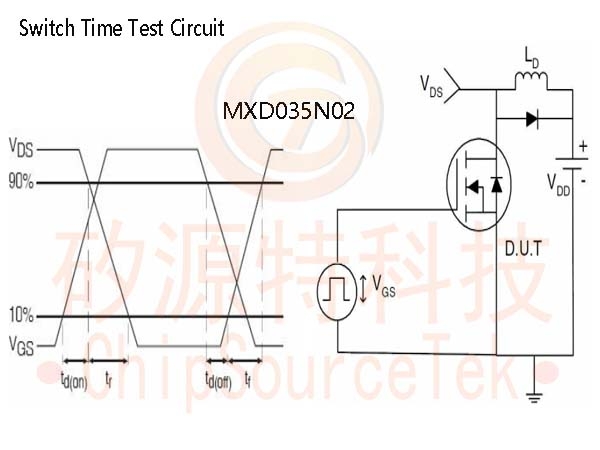

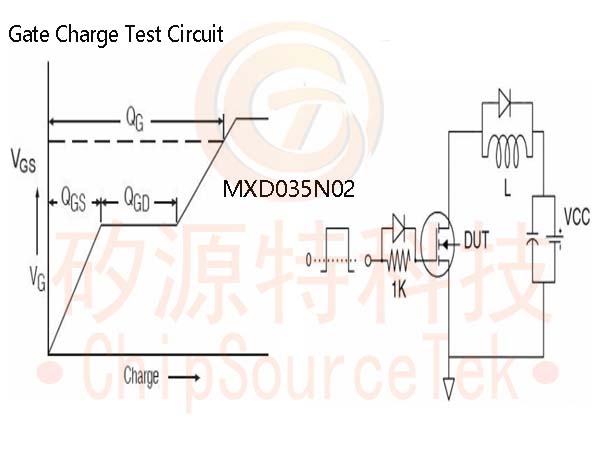

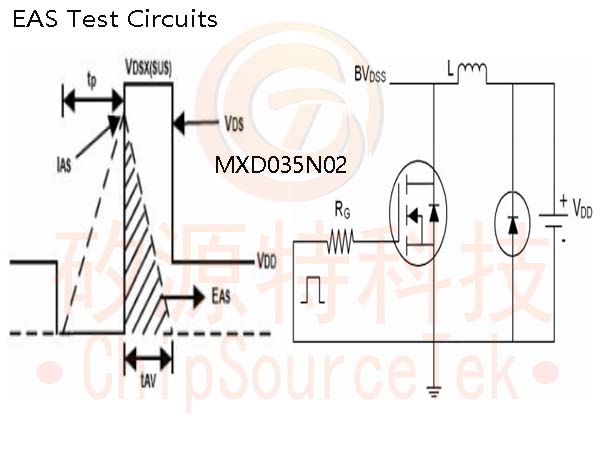

MXD035N02 Test Circuit/测试电路:
