CST1002B Description/概述：
CST1002B是VDS=100V,ID=2.3A,RDSON=200mΩ的N通道100V快速切换MOSFETs。
The CST1002B is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST1002B meet the RoHS and Green Product requirement with full function reliability approved.
CST1002B Features/特性：
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST1002B Product Summary/产品概览：
|
BVDSS
|
RDSON
|
ID
|
|
100V
|
200mΩ
|
2.3 A
|

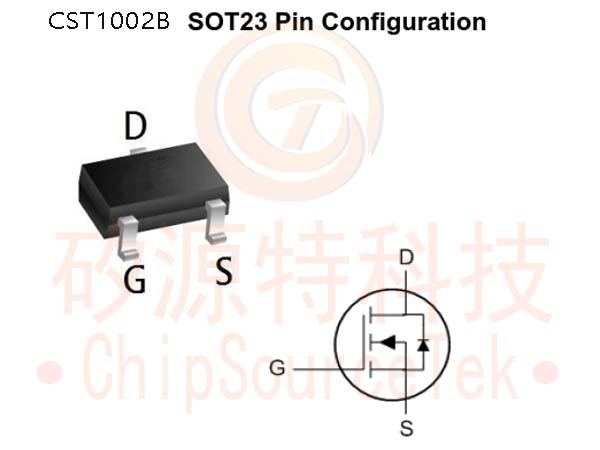

CST1002B SOT23 Pin Configuration/引脚配置：

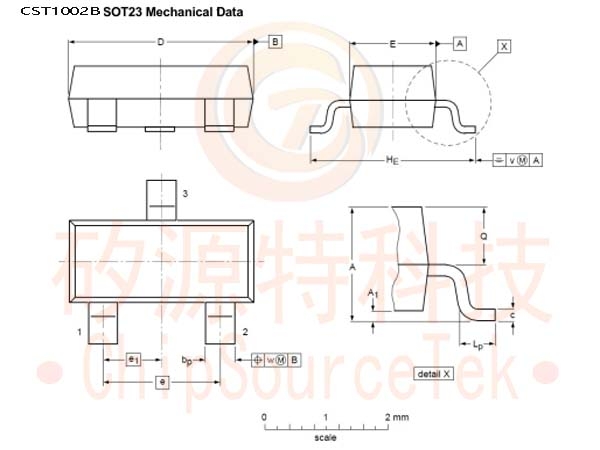

CST1002B SOT23 Package outline dimensions/包装外形尺寸：
