LDO

TX2304

    The TX2304 Series is a Synchronous step-up DC/DC Converter with PFM Control.With the TX2304 Series, a step-up switching DC/DC converter can be configured by using an external coil 、capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
    TX2304系列是一个同步加速直流/直流转换器与PFM控制。与TX2304系列,可以配置一个升压开关直流/直流转换器,通过使用一个外部线圈、电容器。当LX引脚处的电压超过极限时,内置的MOSFET会被一个保护电路关闭,以防止其被损坏。
    TX2304 Description/概述:
        The TX2304 Series is a Synchronous step-up DC/DC Converter with PFM Control.With the TX2304 Series, a step-up switching DC/DC converter can be configured by using an external coil 、 capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
        TX2304系列是一个同步加速直流/直流转换器与PFM控制。与TX2304系列,可以配置一个升压开关直流/直流转换器,通过使用一个外部线圈、电容器。当LX引脚处的电压超过极限时,内置的MOSFET会被一个保护电路关闭,以防止其被损坏。

    TX2304 Features/特性:
    External parts: Coil, capacitor
    Output voltage: Settable to between 2.1V to 5.0V in 0.1V steps
    Maximum Oscillation frequency :300KHz
    Accuracy of ±2%
    High efficiency :95%
    Package: SOT23, SOT23-3, SOT23-5,SOT89 and DFN1*1

    TX2304 Applications/应用:
    Digital cameras
    Electronic notebooks and PDAS
    Portable CD/MD players
    Cameras, video equipment
    Communications equipment
    Power supply for microcomputers

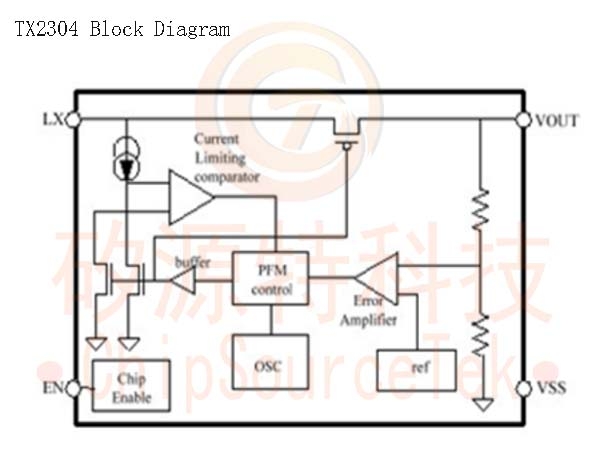

    TX2304 Block Diagram:

    TX2304 Order Information:
    TX2304-①②③④
    Designator
    Symbol
    Description

    ① ②

    Integer

    Output Voltage

    (2.1~5.0) e.g:3.0V=②:3;③:0

    N

    Package: SOT23

    M

    Package: SOT23-3

    M5

    Package: SOT23-5

    P

    Package: SOT89

    FC

    Package: DFN1*1

    G

    Halogen Free

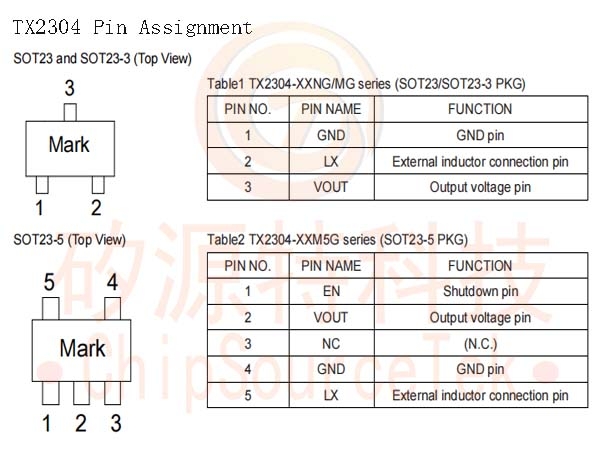

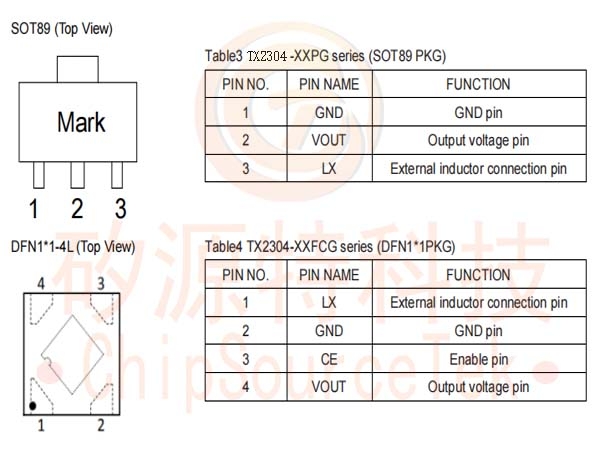

    TX2304 Pin Assignment:

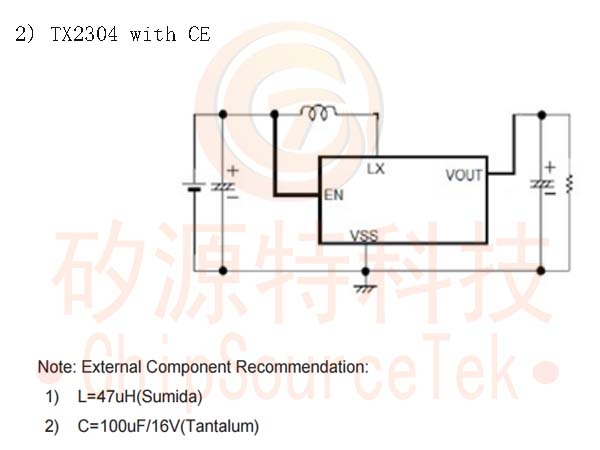

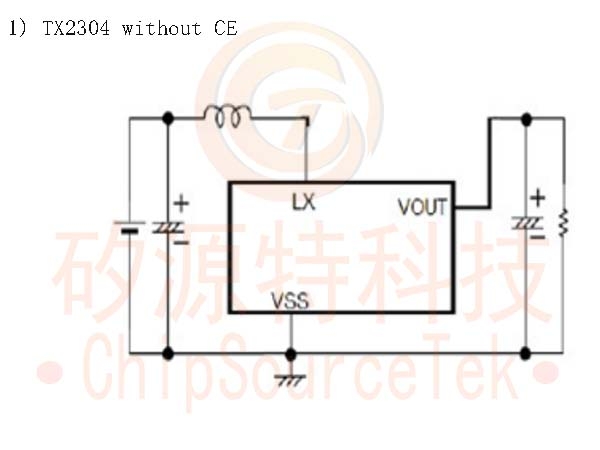

    TX2304 Application Circuits:
