ME6209 General Description:
The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
ME6209 Features:
Ultra low quiescent current: 3.0uA(typ)
High input voltage (up to 18V)
Low dropout voltage :80mV@Iout=40mA
（VOUT=3.3V）
Output voltage accuracy： ±2％
Maximum output current：250mA (VOUT =3.3V）
Low temperature coefficient
ME6209 Application:
Cameras, video recorders
Voltage regulator for microprocessor
Voltage regulator for LAN cards
Wireless communication equipment
Audio/Video equipment
ME6209 Package:
3-pin SOT23-3、SOT89-3、TO-92

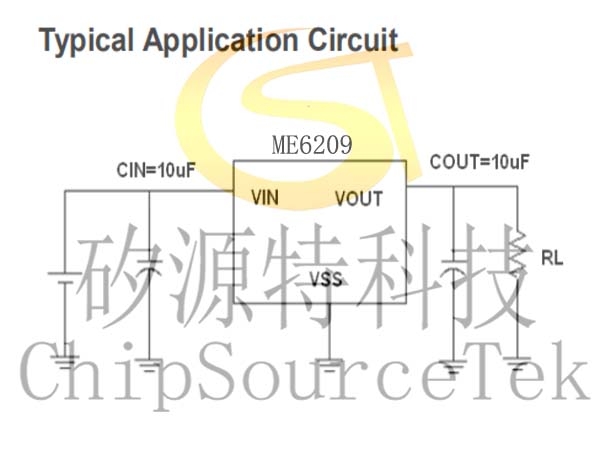

ME6209 Typical Application Circuit:

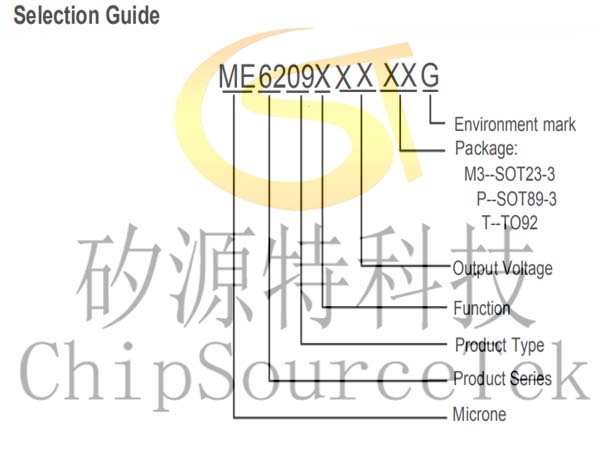

ME6209 Selection Guide:
|
product series
|
product description |
|
ME6209A18M3G
|
VOUT =1.8V； Package：SOT23-3
|
|
ME6209A25TG
|
VOUT =2.5V； Package：TO-92
|
|
ME6209A27M3G
|
VOUT =2.7V； Package：SOT23-3
|
|
ME6209A33PG
|
VOUT =3.3V； Package:：SOT89-3
|
|
ME6209A44PG
|
VOUT =4.4V； Package:：SOT89-3
|
|
ME6209A50M3G
|
VOUT =5.0V； Package：SOT23-3
|
NOTE: At present ,there are five kinds of voltage value：
1.8V、2.5V、2.7V、2.8V、3.0V、3.3V、3.6V、4.0V、4.4V、4.5V、5.0V。
If you need other voltage and package, please contact our sales staff。

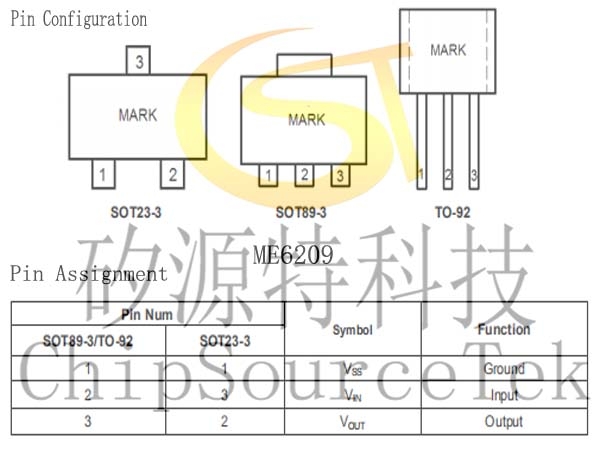

ME6209 Pin Configuration:

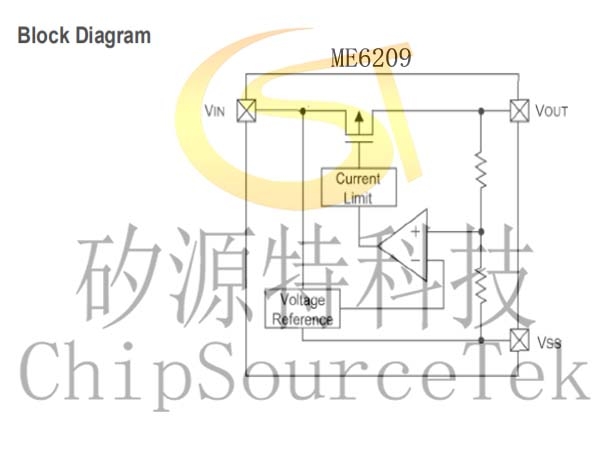

ME6209 Block Diagram:
