TX1117 GENERAL DESCRIPTION:
TX1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. TX1117 features a very low standby current 2mA compared to 5mA of competitor.
Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V, TX1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.
TX1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
TX1117 is available in SOT-223, TO-252 power package.
TX1117 Features:
Maximum output current is 1A
Range of operation input voltage: Max 12V
Line regulation: 0.1%/V (typ.)
Standby current: 2mA (typ.)
Load regulation: 10mV (typ.)
Environment Temperature: -20℃~85℃
TX1117 Applications:
Power Management for Computer Mother Board, Graphic Card
LCD Monitor and LCD TV
DVD Decode Board
ADSL Modem
Post Regulators For Switching Supplies
TX1117 Selection Table:
|
Marking
|
Part No. Output
|
Voltage
|
Package
|
|
1117 B
XXYYZZ
|
XX=12
|
1.2V
|
SOT-223
TO-252
|
|
XX=18
|
1.8V
|
||
|
XX=25
|
2.5V
|
||
|
XX=33
|
3.3V
|
||
|
XX=50
|
5.0V
|
||
|
XX=120
|
12.0V
|
||
|
XX=AD
|
Adjustable
|
TX1117 Order Information:
|
Marking
|
Designator
|
Description
|
|
1117 B
XXYYZZ
|
1117
|
Product code
|
|
B
|
Fab Code
|
|
|
XX
|
Output Voltage(1.2~12.0V)
|
|
|
YY
|
LOT NO.
|
|
|
ZZ
|
DATA CODE
|
Note:”XX” stands for output voltages. Other voltages can be specially customized

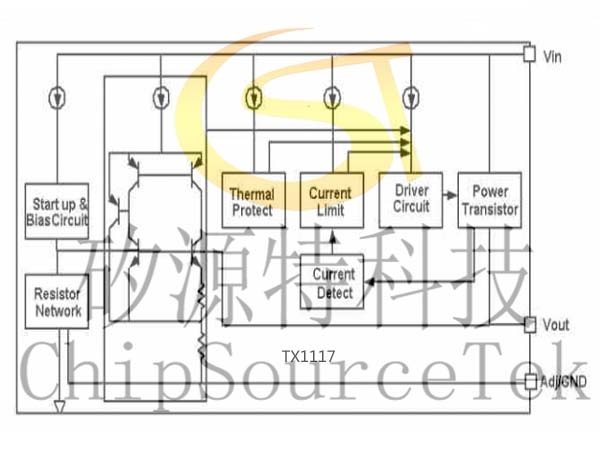

TX1117 Block Diagram:
TX1117 Block Diagram:

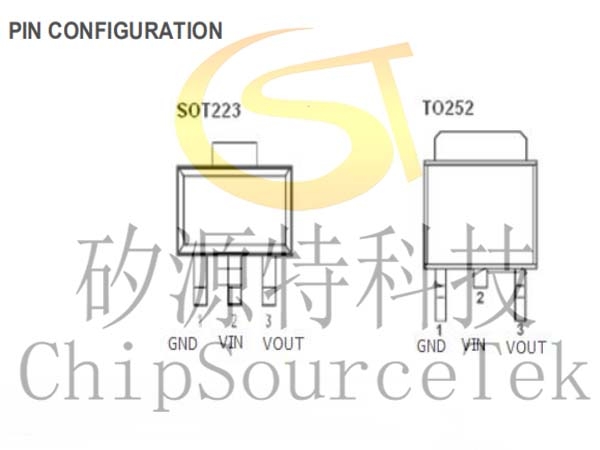

TX1117 Pin Assignment:

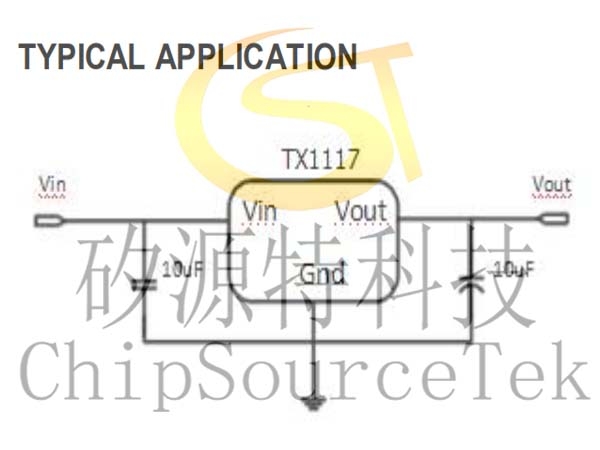

TX1117 Application Circuits:
