PE8806概述：
PE8806是VDS=18V，ID=7A，RDS(ON)<14mΩ @VGS=4.5V，RDS(ON)<16mΩ @VGS=3.8V，RDS(ON)<20mΩ @VGS=2.5V的N沟道MOSFET。
PE8806的丝印是8806，PE8806提供SOT-23-6L封装。
PE8806的丝印是8806，PE8806提供SOT-23-6L封装。
The PE8806 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
PE8806特性：
VDS = 18V, ID = 7A
RDS(ON) < 14mΩ @ VGS=4.5V
RDS(ON) < 16mΩ @VGS=3.8V
RDS(ON) < 20mΩ @VGS=2.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
PE8806应用：
Battery Protection
Load switch
Power management

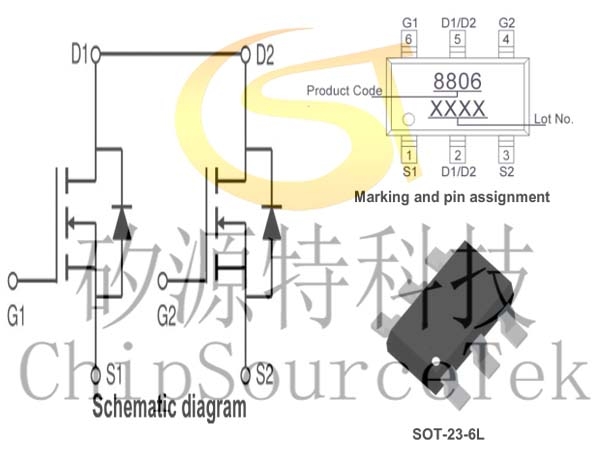

PE8806典型应用及引脚：
