CST60N04N Description:
CST60N04N is a fast switching Mosfet for N-channel with BVDSS=40V, RDSON=7.0mΩ, and ID=68A. Provide TO252 packaging.
The CST60N04N is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST60N04N meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST60N04N Feature:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST60N04N Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
7.0mΩ |
68A |

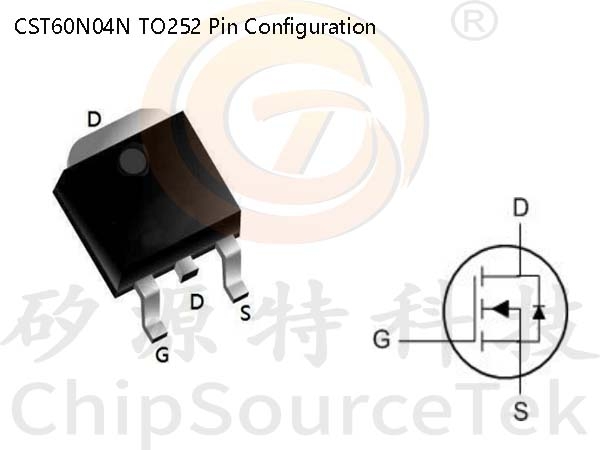

CST60N04N TO252 Pin Configuration:

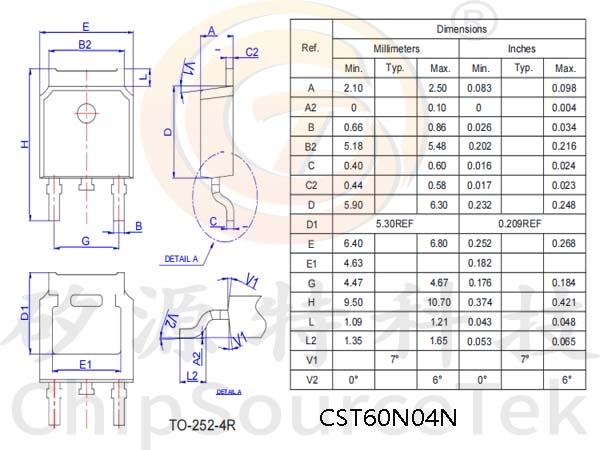

CST60N04N Package Mechanical Data-TO-252:

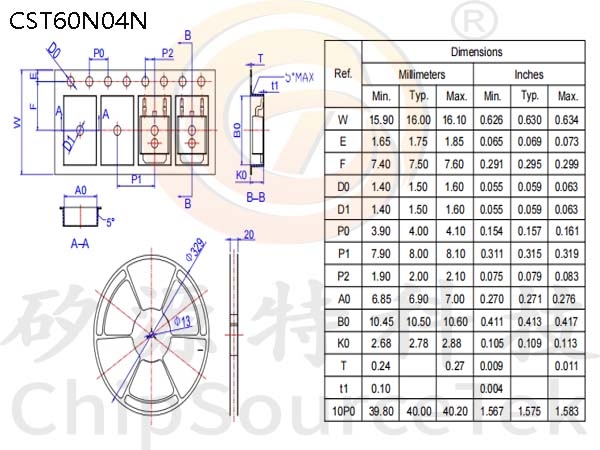

CST60N04N Reel Spectification-TO-252:
