CSTT90N20T Description:
CSTT90N20T is a fast switching Mosfet for N-channel with BVDSS=200V, RDSON=23mΩ, and ID=90A. Provide TO220 packaging.
The CSTT90N20T is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CSTT90N20T meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CSTT90N20T Feature：
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CSTT90N20T Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
100V |
95mΩ |
5.0A |

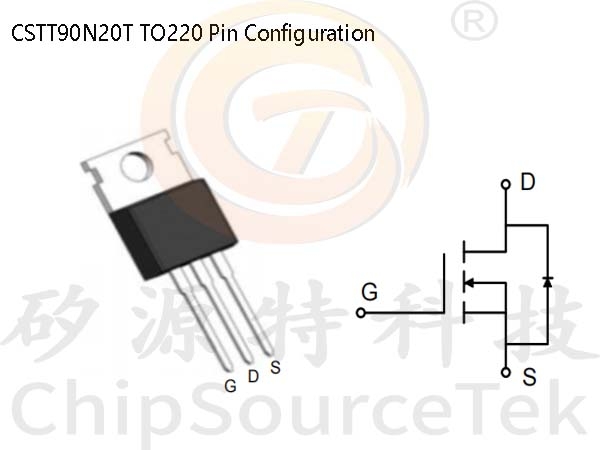

CSTT90N20T TO220 Pin Configuration:

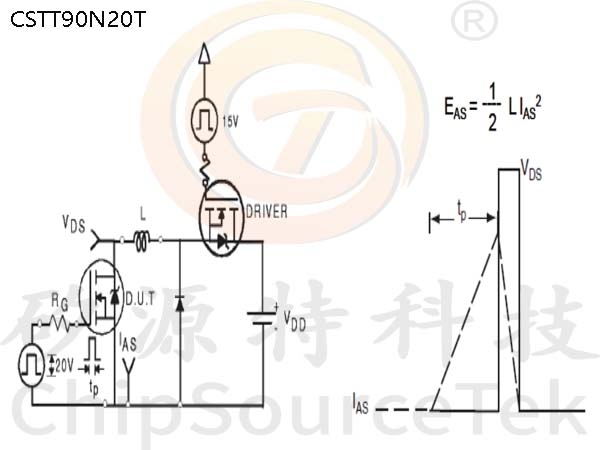

CSTT90N20T Avalanche Test Circuit：

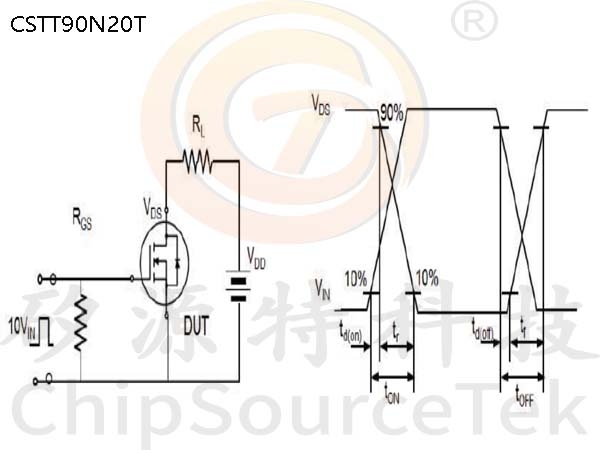

CSTT90N20T Switching Time Test Circuit：

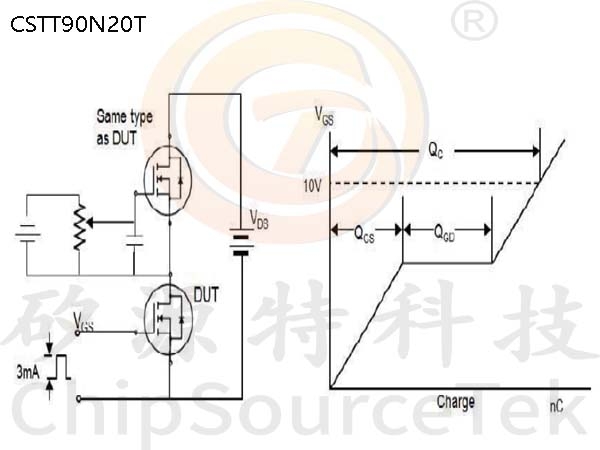

CSTT90N20T Gate Charge Test Circuit：
