CST15N12 Description:
CST15N12 is a fast switching Mosfet for N-channel with BVDSS=120V, RDSON=120mΩ, and ID=15A. Provide TO252 packaging.
The CST15N12 is the highest performance trench N-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
The CST15N12 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST15N12 Feature:
Super Low Gate Charge
Green Device Available
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST15V12 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
120V |
120mΩ |
15A |
CST15N12 TO252 Pin Configuration:

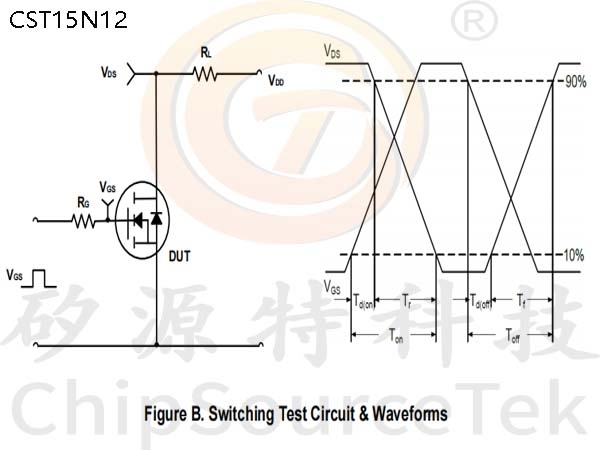

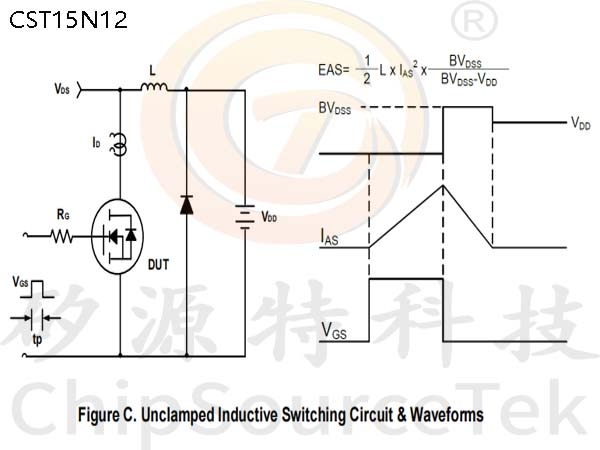

CST15N12 Test Circuit:

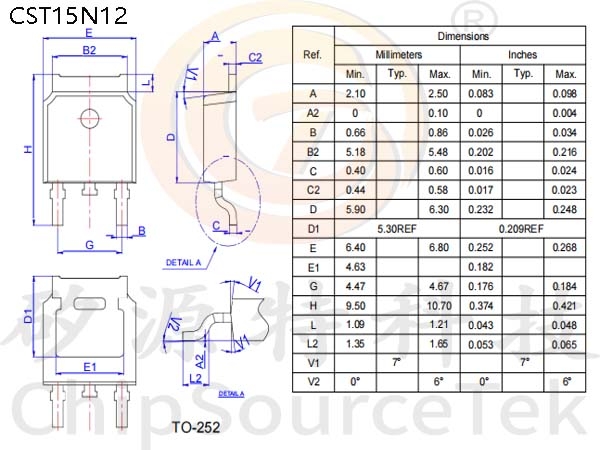

CST15N12 Package Mechanical Data TO-252:
CST15N12 Reel Spectification-TO-252-4R:
