CST30N02 Description:
CST30N02 is a fast switching Mosfet for N-channel with BVDSS=20V, RDSON=12m Ω, and ID=30A. Provide TO252 packaging.
The CST30N02 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30N02 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST30N02 Feature:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST30N02 Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
20V |
12mΩ |
30A |

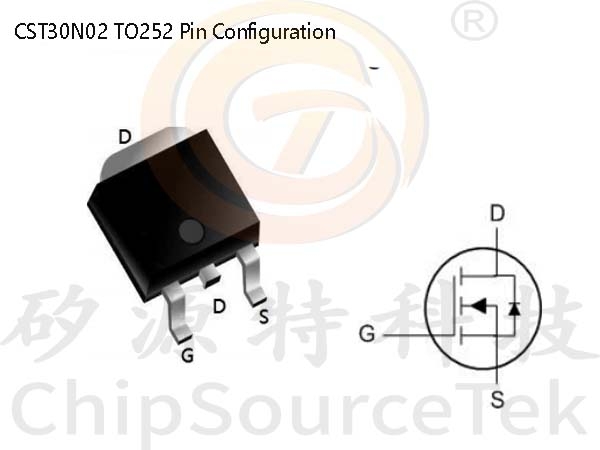

CST30N02 TO252 Pin Configuration：
.jpg)
CST30N02 Package Mechanical Data-TO-252-4R：

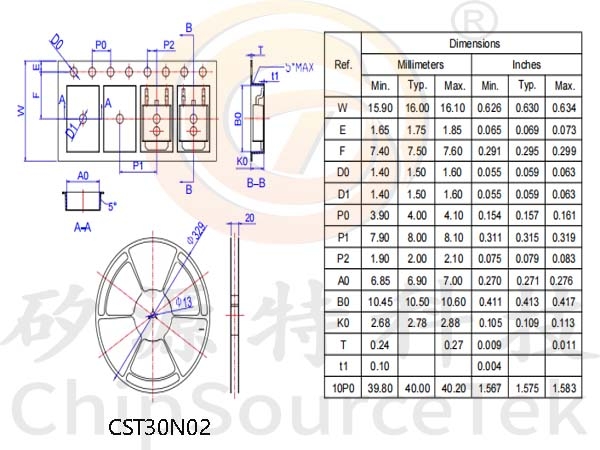

CST30N02 Reel Spectification-TO-252-4R：
