CSTS60N04D Description:
CSTS60N04D is a fast switching MOSFET for N-channel with BVDSS=40V, RDSON=6.9m Ω, and ID=60A. Provide PDFN3333-8L packaging.
CSTS60N04D Features:
Split Gate Trench MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)
CSTS60N04D Applications:
DC-DC Converters
Power management functions
Synchronous-rectification applications
CSTS60N04D Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
40V |
6.9mΩ |
60A |

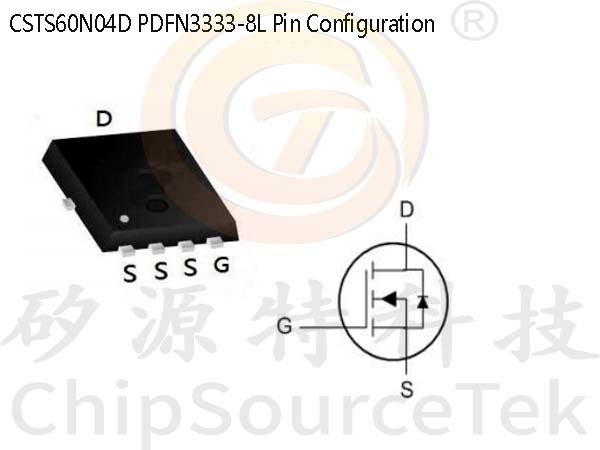

CSTS60N04D PDFN3333-8L Pin Configuration：

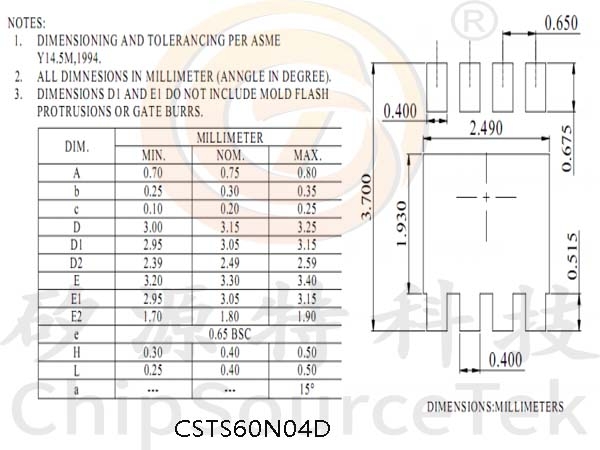

CSTS60N04D Package Mechanical Data-PDFN3333-8L-Single：
