CST30N06F Description:
CST30N06F is an N-channel Fast Switching Mosfets with BVDSS=60V, RDSON=24mΩ, and ID=30A. Provide PDFN5060-8L packaging.
The CST30N06F is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30N06F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST30N06F Features:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST30N06F Product Summary:
BVDSS
|
RDSON
|
ID
|
60V |
24mΩ |
30A |

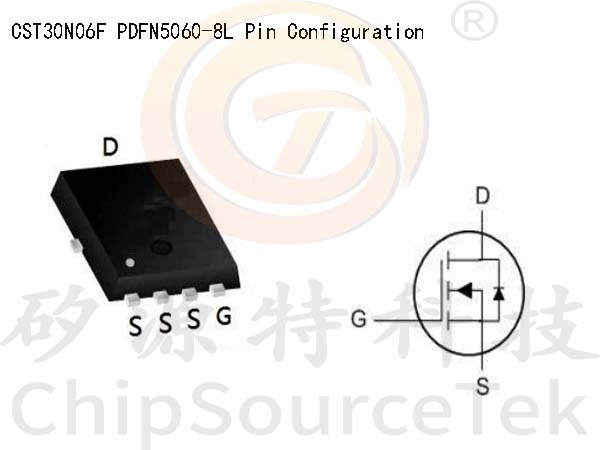

CST30N06F PDFN5060-8L Pin Configuration:

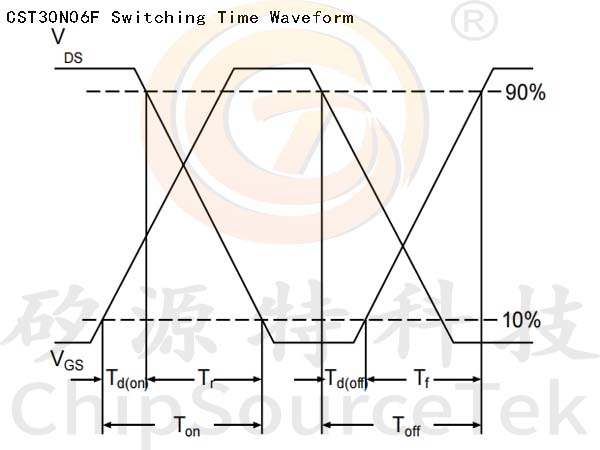

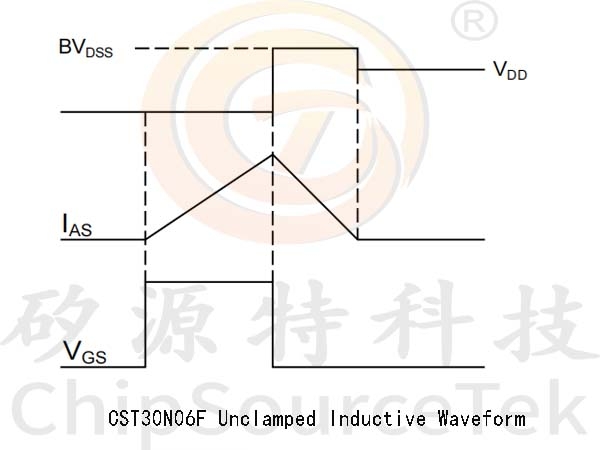

CST30N06F Typical Characteristics:
