CSTS40N10 Description/描述:
CSTS40N10 is a fast switching Mosfets for N-channel with BVDSS=100V, RDSON=20m Ω, and ID=40A. Provide TO-252 packaging.
CSTS40N10 Features/特性:
Split Gate Trench MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)
CSTS40N10 Applications/应用：
DC-DC Converters
Power management functions
Synchronous-rectification applications
CSTS40N10 Product Summary/产品概览:
|
BVDSS
|
RDSON
|
ID
|
|
100V |
20mΩ |
40A |

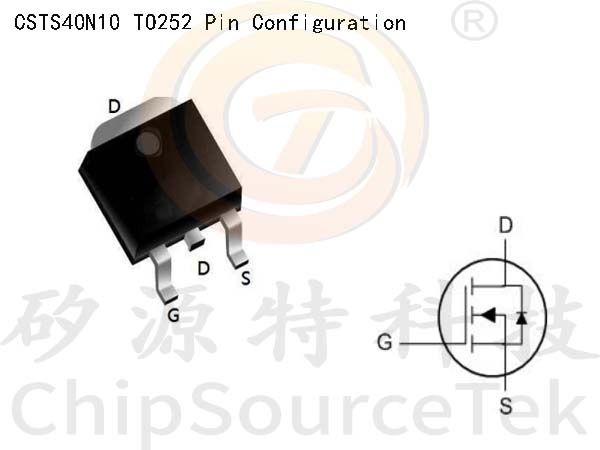

CSTS40N10 TO252 Pin Configuration/引脚配置:

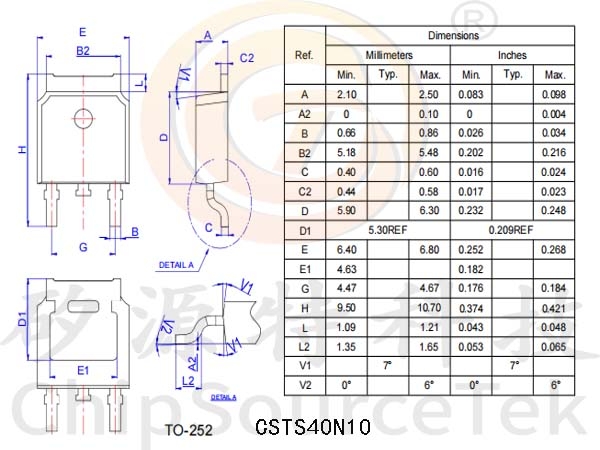

CSTS40N10 Package Mechanical Data TO-252/包装机械数据TO-252:

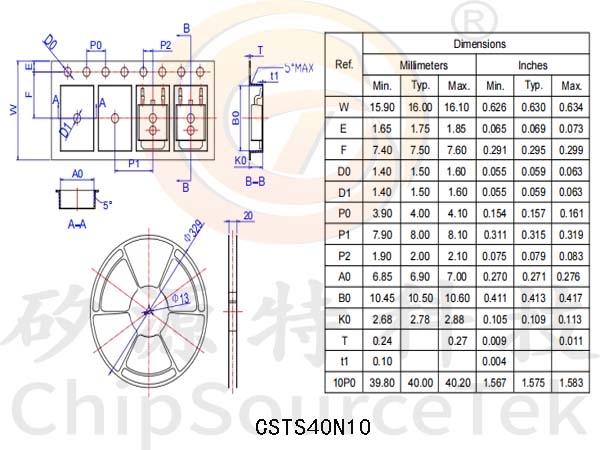

CSTS40N10 Reel Spectification-TO-252-4R/卷盘规格-TO-252-4R:
