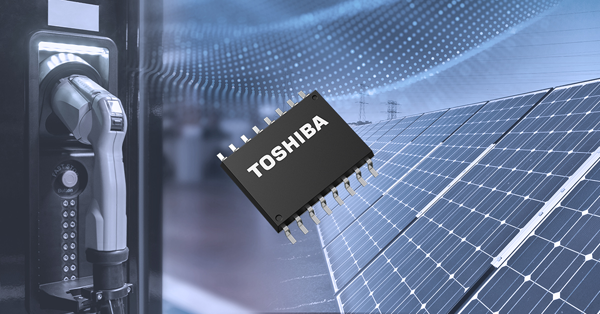

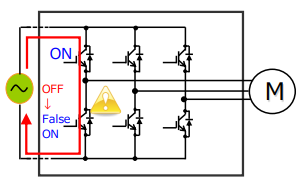

Toshiba launches an intelligent gate driven optocoupler, which helps simplify the peripheral circuit design of power devices
|
Device model |
TLP5222 |
||
|
package |
Name |
SO16L |
|
|
size（mm） |
10.3×10（Typical value）thickness：2.3（Maximum value） |
||
|
absolute maximum rating |
operation temperature Topr（℃） |
-40-110 |
|
|
peak output current IOPH／IOPL（A） |
±2.5 |
||
|
Recommended Operating Condition |
Output side total power supply voltage（VCC2−VEE）（V） |
15至30 |
|
|
Fault feedback IC power supply voltage VCC1（V） |
2.7-5.5 |
||
|
Electrical characteristics |
Power supply current ICC2H，ICC2LMaximum value（mA） |
5 |
|
|
Threshold input current（L／H）IFLHMaximum value（mA） |
6.0 |
||
|
DESATthreshold voltage VDESATTypical value（V） |
6.6 |
||
|
Switch characteristics |
Transmission delay time tpHL，tpLHMaximum value（ns） |
250 |
|
|
DESATEnter Mute Time tDESAT(MUTE) Typical value（μs） |
25.5 |
||
|
Common mode transient suppression CMH、CMLminimum value（kV/μs） |
@Ta＝25℃， CF＝Open |
±25 |
|
|
@Ta＝25℃， CF＝1nF |
±50 |
||
|
Isolation characteristics |
Isolation Voltage BVSminimum value（Vrms） |
@Ta＝25℃ |
5000 |
|
