CST4886D Description:
CST4886D is a dual N-channel fast switching Mosfet with BVDSS=40V, RDSON=17mΩ, and ID=20A. Provide PDFN3333-8L packaging.
The CST4886D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST4886D meet the RoHS and Green Product requirement with full function reliability approved.
CST4886D Feature：
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4886D Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
17mΩ |
20A |

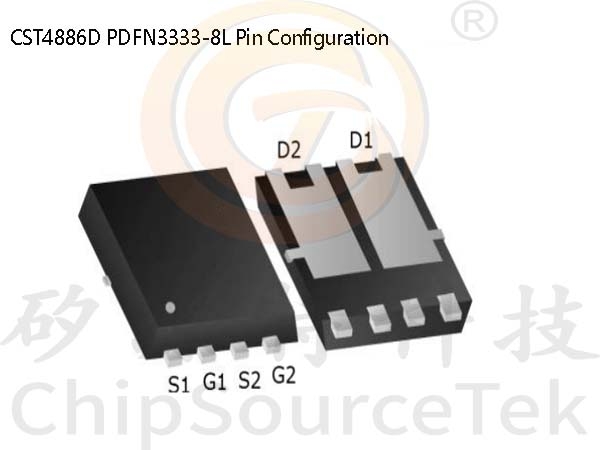

CST4886D PDFN3333-8L Pin Configuration:

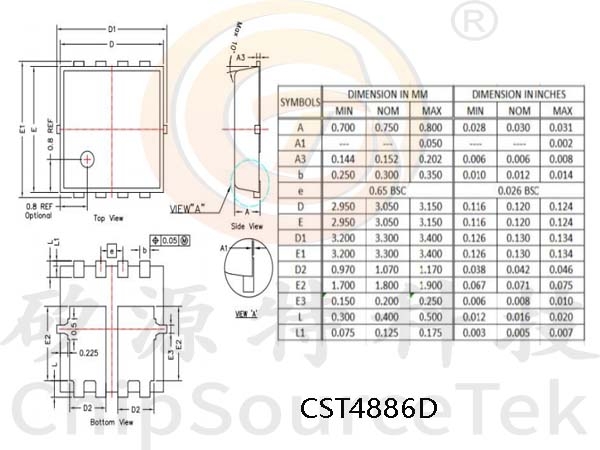

CST4886D Package Mechanical Data-PDFN3333-8L-D-Type A:

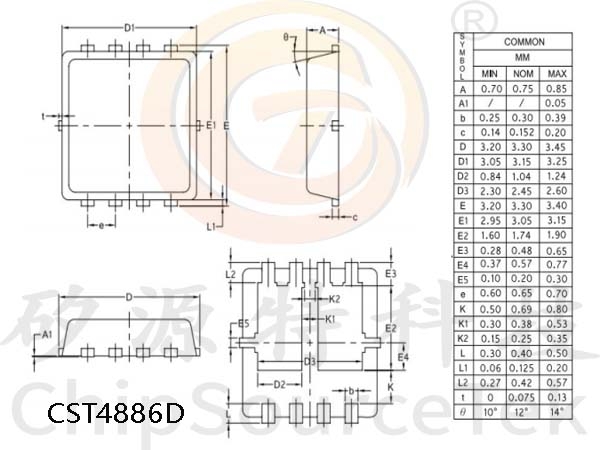

CST4886D Package Mechanical Data-PDFN3333-8L-D-Type B:
