CST4884 Description:
CST4884 is a fast switching Mosfet for dual N channels with BVDSS=40V, RDSON=12mΩ, and ID=12A. Provide SOP8 packaging.
The CST4884 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST4884 meet the RoHS and Green Product requirement with full function reliability approved.
CST4884 Feature:
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4884 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
12mΩ |
12A |

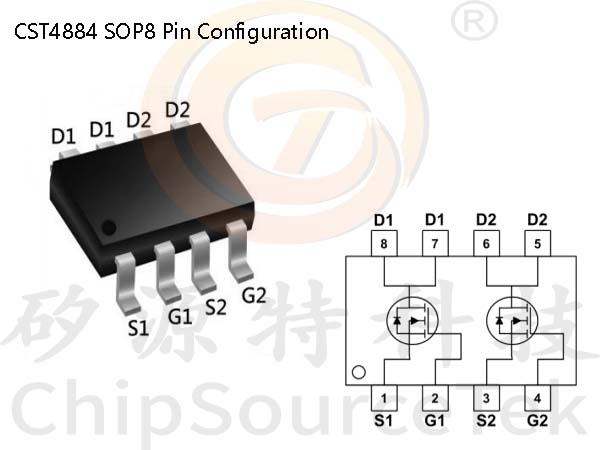

CST4884 SOP8 Pin Configuration:

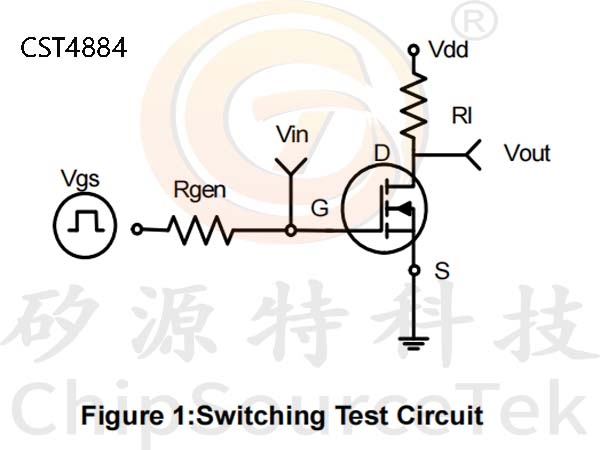

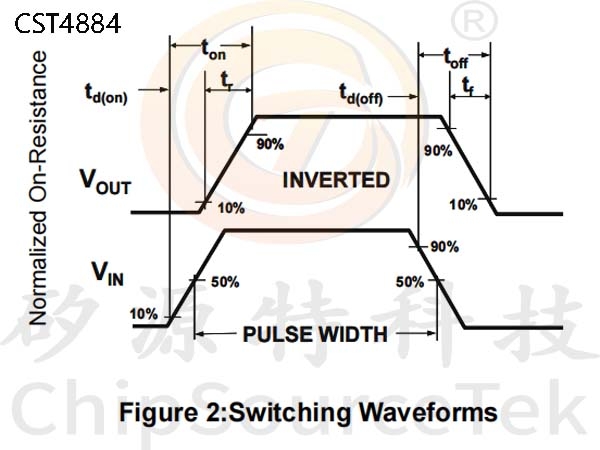

CST4884 Test Circuit and Waveforms：

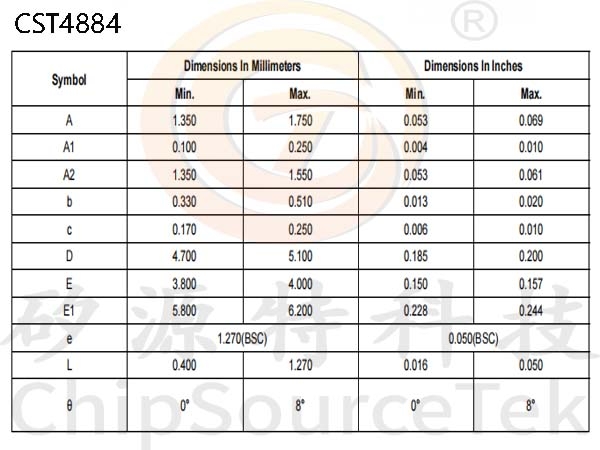

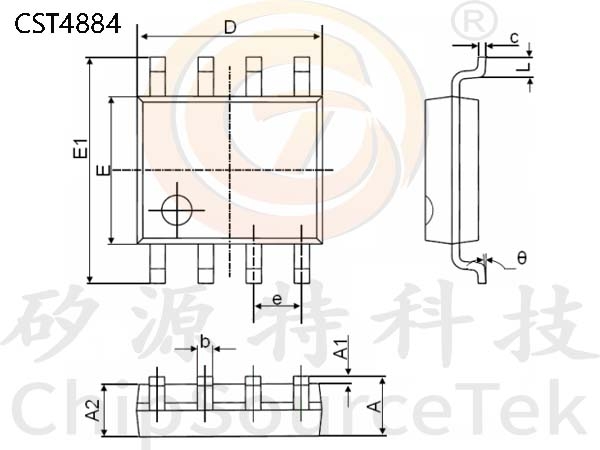

CST4884 SOP-8 Package Information:
